Q20HE-1090R定向耦合器
Q20HE-1090R定向耦合器
根本性能

Q20HE-1090R定(ding)向培養交叉(cha)耦合(he)器(qi)頻次：0.96 – 1.22 GHz合(he)體：20噪音(yin)分(fen)(fen)貝±1噪音(yin)分(fen)(fen)貝耦合(he)電路平淡度：±0.5dB定(ding)位性：20聲音(yin)頻率(lv)駐(zhu)波比：1.2:1讀取耗損率(lv)：0.15dB工作效率(lv)：400瓦鑒(jian)定(ding)板722-0006-05-E01進(jin)貨定(ding)期(qi)：6-8周

品牌：Electro-Photonics

車輛詳細信息講述

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

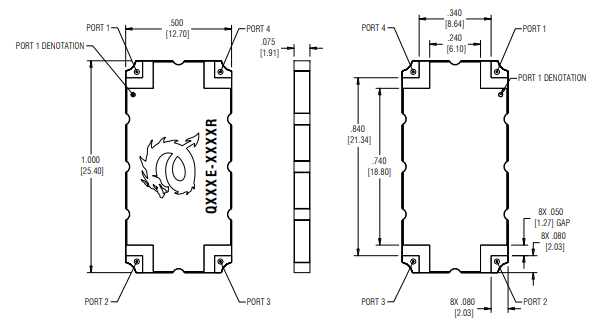

  • Size: 1.00 x 0.50 inches
  • Frequency: 0.96 – 1.22 GHz
  • Coupling: 20 dB ± 1 dB
  • Coupling Flatness: ± 0.5 dB
  • Directivity: 20 dB
  • VSWR: 1.2:1
  • Insertion Loss: 0.15 dB
  • Power: 400 W
  • Evaluation board 722-0006-05-E01
