?Q20HK-2150R定向耦合器

非常重要參數值

Q20HK-2150R定向耦合器

聲音頻率：2.1 – 2.2 GHz耦合電路：20.4分貝±0.4分貝定位性：30聲音頻率駐波比：1.15:1放損耗率：0.3dB電功率：80瓦評定板722-0006-07-E01定貨時間間隔：6-8周

品牌：Electro-Photonics

物品祥情介召

2100-2200 MHz Directional Coupler

The Q20HK-2150R is a bi-directional coupler with high directivity and high power handling. Q20HK-2150R is a replacement for Soshin P/N GSC321-20M2150. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

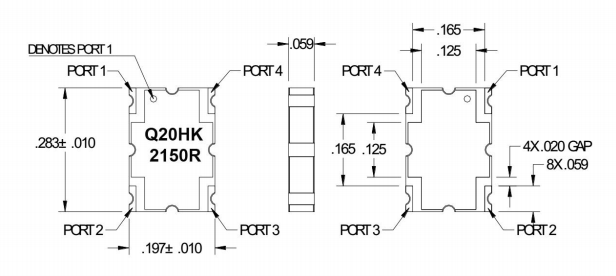

Size: 0.283 x 0.197 inches
Frequency: 2.1 – 2.2 GHz
Coupling: 20.5 dB ± 0.5 dB
Directivity: 30 dB
VSWR: 1.15:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
