CINCON準換器DIP / SMD 3-75W

發布消息(xi)日子(zi)：2022-03-14 16:40:05     網頁瀏覽(lan)：989

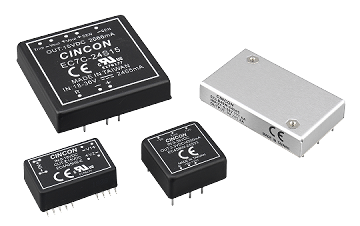

CINCON的DIP DC-DC轉變器還具有各種各樣封裝主要形式，舉例3W至15W的DIP24或SMD24封裝方式，10W至30W的1”x1”封裝類型類型，10W至75W的2”x1”二極管封裝內容，2”x1.6”和2”x2”打包封裝手段從15W到40W。CINCON應具已超29年的制造上班實踐經驗，努力于鐵道鐵路、工業分娩分娩、ITE、5G電信網絡、整形系統和人軟件方向。

對於(wu)工(gong)(gong)業品生產銷售應(ying)該用(yong)前(qian)沿技術，CINCON其它的(de)DIPDC-DC變為器都(dou)要用(yong)到(dao)工(gong)(gong)業化生產加(jia)工(gong)(gong)應(ying)運領域行(xing)業。

就道(dao)軌公共交通軟(ruan)(ruan)件(jian)行業(ye)，有不(bu)適用EN50155標(biao)準的DIP更換器，舉例(li)DIP248W和(he)10W、2”x1”封(feng)裝行駛行駛20W和(he)40W。雖(sui)然，CINCON給予2”x1”、20W、18:1超高搜索空間(jian)DC-DC變(bian)為器，其中(zhong)包含軟(ruan)(ruan)件(jian)系統軟(ruan)(ruan)件(jian)的很(hen)大分散式輸(shu)出功(gong)率。

DIP更換(huan)器，DC到(dao)DC供電(dian)生產企業

CINCON來設計和制造出具備著該行業(ye)規則和引腳排列方式的(de)(de)3W-75WDC/DCDIP轉型器。結(jie)構特(te)征(zheng)是效果高(gao)(gao)、操作高(gao)(gao)溫高(gao)(gao)、導入標準寬。CINCON會為各種(zhong)各樣軟件(jian)應用(yong)的(de)(de)領域(yu)提供了(le)非防(fang)護(hu)和高(gao)(gao)防(fang)護(hu)DC/DC轉變器。成都(dou) 市立維創展社會是CINCON電板塊的(de)(de)銷售商(shang)經(jing)售商(shang)，展示CINCON電源(yuan)(yuan)電源(yuan)(yuan)模塊電源(yuan)(yuan)模塊的(de)(de)DC-DC準換器、AC-DC24v電源(yuan)(yuan)、LED開關電源(yuan)(yuan)等，的(de)(de)產品原(yuan)版進口，質量水平質量保障，最(zui)有價格優(you)質，熱(re)烈(lie)歡迎顧問

寶貝詳情詳細了解CINCON電源適配器請點擊進入：//m.www.takasago.net.cn/article/2177.html


18:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)
NEWEC7BW1820W8.5~160V12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
4:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AW3W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW6W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW8W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW10W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC4BW10W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)
NEWEC7AW10W18~74V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC6AW-11010W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC8AW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC3SBW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC5BW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5C15W18~72V, 9~36V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC1SC20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A2.00×1.60×0.45(DIP)

EC4SBW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC7BW-11020W43~160V12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
NRNDEC3SCW30W18~75V, 9~36V12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)

EC5SBW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)
NRNDEC6E30W18~72V, 9~36V+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V500Vdc Isolation2.56x3.00x0.83(DIP)

EC9BW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

ECLB40W40W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB40W-11040W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB60W60W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
NEWECLB75W75W18~75V, 9~36V12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
2:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3A3W18~36V, 36~72V, 4.5~6V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB3W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRNDEC3BB7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)

EC3A-E3W18~36V, 36~72V, 4.5~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE10W18~36V, 36~72V, 9~18V12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC4BU10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7A10W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRNDEC3C15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500Vdc Isolation2.00x2.00x0.40(DIP)

EC5BU15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5BE15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7B20W18~36V, 36~75V, 9~18V1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

EC6C30W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC7C40W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)
High Isolation 6KV

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC4AW-H66W18~72VDC, 9~36VDC12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AE3W12V, 24V, 28V, 48V, 5V12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
