?Mi-Wave波導到同軸配適器

推送期限：2022-11-01 16:43:40     閱讀：849

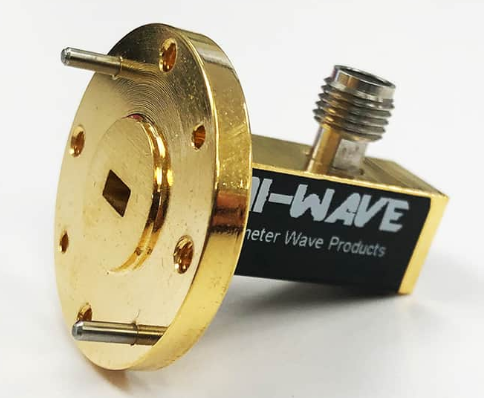

Mi-Wave的410編波導到同軸匹配器就能很好的從四邊形波導適用于同軸連結器。全波導網絡帶寬從8.2到110GHz。低加入衰減和駐波比是這是波導同軸匹配器基本特征的形態。成本控制費用的生產銷售最新版本也能讓機器和整車線束廠廣泛應用。實驗性室級別也可不可以為某些款式。Mi-Wave的同軸到波導兼容性測試器具備網絡通信環保設備的意愿，是目前為止世表面可用于的較好的波導互轉兼容性測試器之四。

表現

提高低的成本ios版本

率位置 8.2 至 110 GHz

給予幾種同軸接入器

實驗操作室實用的高效果新版本。

Mi-Wave是商用型型和軍工行業用公分波軟件亞洲地區引領者，能能具備公分波電子器件和摸塊處理好預案。軟件線主要包括：圖像運放電路、混頻器、衰減器、濾波器、面板開關、T/R、外置天線、光菲涅爾透鏡等，所富含幾率達320GHz.

杭州市立維創展網絡不足企業商標授權批發商賣出Mi-Wave公分波好產品，歡迎圖片咨訊。

詳細信息熟知Mi-Wave請彈框：//takasago.net.cn/brand/52.html


Model

Band

Frequency (GHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling (W)

Waveguide Port

Coaxial Port

410X/39/NF

X-Band

8.2-12.4

0.4

16

400

WR-90 Waveguide, UG-39/U Flange

NF- Female connector

410X/39/SMAF

X-Band

8.2-12.4

0.4

17

150

WR-90 Waveguide, UG-39/U Flange

SMA- Female connector

410X/39/SMAM

X-Band

8.2-12.4

0.4

16

150

WR-90 Waveguide, UG-39/U Flange

SMA-Male connector

410(51)/UBR180/CKF

WR-51

15-12

0.3

20

10

WR-51 Waveguide, UBR180 Flange w "O" Ring

CK-Female connector

410(34)/596/KF

WR-34

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/KF

WR-34

22-33

0.4

17

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/3.5mmF

WR-35

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

3.5 mm Female Connector

410(75)/SMAF

WR-75

10-15

0.3

20

150

WR-75 Waveguide

SMA Female

410Ku/419/SMAF

Ku-Band

12.4-18

0.3

20

150

WR-62 Waveguide, UG-419 Flange

SMA Female

410K/595/SMAF

K-Band

18-26.5

0.4

20

150

WR-42 Waveguide with UG-595/U Flange

SMA-Female

410K/595/KF

K-Band

18-26.5

0.4

20

10

WR-42 Waveguide, UG-595/U Flange

K-Female connector

410A/599/KF

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Female connector

410A/599/KM

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Male connector

410B/383/KF

Q-Band

33-40

0.5

20

10

WR-22 Waveguide with UG-383/U Flange

K-Female connector

410B/383/KM

Q-Band

33-40

0.4

20

10

WR-22 Waveguide with UG-383/U Flange

2.92mm (K) Male connector

410B/383/2.4mmF

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Female Connector

410B/383/2.4mmM

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Male Connector

410U/383/1.85mmF

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Female connector

410U/383/1.85mmM

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Male Connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide With UG-385/U Flange

1.85 mm Female connector

410V/385/1.85mmM

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Male connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Female connector

410V/385/1.00mmF

V-Band

50-67

0.5

15

10

WR-15 Waveguide with UG-385/U Flange

1.00 mm Female connector

410E/387/1.00mmM

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.85 mm Male connector

410E/387/1.00mmF

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.00 mm Female connector

410W/387/1.00mmM

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Male connector

410W/387/1.00mmF

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Female connector
