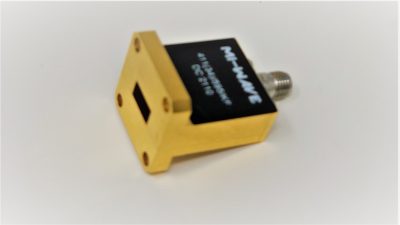

?Mi-Wave內聯波導至同軸替換器

發表(biao)的時間(jian)：2022-12-06 16:46:21     預覽(lan)：830

Mi-Wave的411內聯波導到同軸匹配器提拱了將長方形波導適用人群為內聯同軸連結器的高效路經。全波導頻帶長寬長寬標準屬于8.2~110ghz。Mi-Wave的設計方案一個構想和流程技術使這類更換工具備相較低的導入損耗率和駐波比。

Mi-Wave內聯(lian)波導到同軸兼(jian)容器的(de)低(di)價格種(zhong)植制(zhi)造出模快能讓主設備和(he)OEM用途。某一些型也其(qi)有實驗(yan)操(cao)作室(shi)供應信息。

結構特征(zheng)

展(zhan)示節省成本價功能

作業頻段8.2至110GHz

出(chu)具(ju)多重微波射頻(pin)電(dian)力(li)電(dian)纜連到器

實驗報告室(shi)選擇的高(gao)耐熱性接口。

Mi-Wave是家用型和軍用用mmmm波(bo)食品各國卓越者，能(neng)提拱(gong)mmmm波(bo)電子元(yuan)器(qi)件和板塊處理好策(ce)劃方案。食品線(xian)是指：放小(xiao)器(qi)、混頻器(qi)、衰(shuai)減器(qi)、濾波(bo)器(qi)、旋轉(zhuan)開關、T/R、外置天線(xian)、漫平凸透鏡(jing)等(deng)，所分為頻段(duan)萬代高(gao)達320GHz.

東莞 市立(li)維創展科技信息有限廠家英文廠家授權證書經(jing)銷(xiao)商銷(xiao)量Mi-Wave亳米波產品，歡迎會(hui)咨詢(xun)了解。

淘寶手機端掌握Mi-Wave請點選：//m.www.takasago.net.cn/brand/52.html


Model

Band

Frequency (GHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling (W)

Waveguide Port

Coaxial Port

411(34)/595/KF

WR-34

22-33

0.4

17

20

WR-34 Waveguide, UG-595/U-M Flange

K-Female (2.92) connector

411(34)/595/KM

WR-34

22-33

0.4

20

20

WR-34 Waveguide, UG-595/U-M Flange

K-Male (2.92) connector

411K/595/2.4mmF

K-Band

18.5-26.5

0.3

16

20

WR-42 Waveguide, UG-595/U Flange

K (2.92 mm) Female connector

411K/595/KM

K-Band

18.5-26.5

0.3

20

20

WR-42 Waveguide, UG-595/U Flange

K-Male connector

411K/595/2.4mmF

K-Band

18.5-26.5

0.3

17

20

WR-42 Waveguide, UG-595/U Flange

K (2.92 mm) Female connector

411K/595/SMAM

K-Band

18.5-26.5

0.4

20

20

WR-42 Waveguide, UG-595/U Flange

SMA-Male

411A/599/KM

Ka-Band

26.5-40

0.4

20

20

WR-28 Waveguide, UG-599/U Flange

K-Male (2.92) connector

411A/599/KF

Ka-Band

26.5-40

0.4

17

20

WR-28 Waveguide, UG-599/U Flange

K-Female (2.92) connector

411B/383/2.4mmM

Q-Band

33-50

0.7

17

15

WR-22 Waveguide, UG-383/U Flange

2.4mm Male connector

411B/383/2.4mmF

Q-Band

33-50

0.7

17

15

WR-22 Waveguide, UG-383/U Flange

2.4mm Female connector

411B/383/1.85mmF

Q-Band

33-50

0.7

20

15

WR-22 Waveguide, UG-383/U Flange

1.85mm Female connector

411B/383/1.85mmF

Q-Band

33-50

0.7

20

15

WR-22 Waveguide, UG-383/U Flange

1.85mm Female connector

411B/383/2.4mmM

Q-Band

33-40

0.7

17

15

WR-22 Waveguide, UG-383/U Flange

2.4mm Male connector

411B/719/2.4mmF

Q-Band

33-50

0.7

20

15

WR-22 Waveguide, UG-719/U Square Flange

2.4mm Female connector

411U/383/1.85mmF

U-Band

40-60

0.7

20

10

WR-19 Waveguide, UG-383/U-M Flange

1.85mm Female connector

411U/383/1.85mmM

U-Band

40-60

0.7

20

10

WR-19 Waveguide, UG-383/U-M Flange

1.85mm Male connector

411V/385/1.85mmF

V-Band

50-75

0.7

20

10

WR-15 Waveguide, UG-385/U Flange

1.85mm Female connector

411V/385/1.85mmM

V-Band

50-75

0.7

20

10

WR-15 Waveguide, UG-385/U Flange

1.85mm Male connector

411V/385/1.85mmF

V-Band

50-75

0.7

20

10

WR-15 Waveguide, UG-385/U Flange

1.85 mm Female connector

411V/385/1.00mmF

V-Band

50-75

1

15

5

WR-15 Waveguide, UG-385/U Flange

1.00 mm Female connector

411E/387/1.00mmF

E-Band

60-90

1

14

5

WR-12 Waveguide, UG-387/U Flange

1.00 mm Female connector

411E/387/1.00mmM

E-Band

60-90

1

14

5

WR-12 Waveguide, UG-387/U Flange

1.00 mm Male connector

411W/387/1.00mmF

W-Band

75-110

1

14

5

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Female connector

411W/387/1.00mmM

W-Band

75-110

1

14

5

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Male connector
