?CINCON磚式 DC-DC 換算器

發布信息(xi)時：2022-12-09 16:43:11     搜(sou)索：805

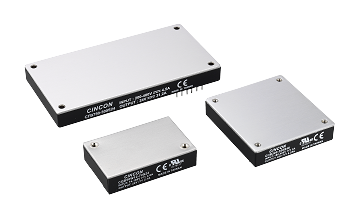

CINCON是游戲經驗雄厚的DC/DC裝換器研發生產廠，CINCON的DC-DC所用磚式供電和切換器，可以提供標準化規范起來的四分最為、半磚和全磚寸尺。CINCON的DC/DC磚設置成在設計印刷輸電線路板上，配備發送交流電阻值位置廣、消毒安全防護網、內容輸出交流電阻值穩定可靠性、的效率比較高、保護好全方面等基本特征。

四分(fen)的一種的磚(zhuan)的尺寸，CINCON有(you)(you)50W到150W最(zui)率比熱容(rong)很高，輸進(jin)條件比較大參數(shu)12:1。半磚(zhuan)長寬比，CINCON有(you)(you)50W到350W最(zui)率密度計算公式上限，輸人(ren)規模最(zui)好橫向12:1。全磚(zhuan)厚度，CINCON有(you)(you)400W到800W最(zui)率硬度最(zui)低，讀取超(chao)范(fan)圍更大寬4:1。

CINCON不(bu)止出(chu)具(ju)規定DC-DC磚式轉(zhuan)型器還供(gong)給了即插即用(yong)(yong)DC-DC轉(zhuan)移(yi)器版塊，CMFC/CMFD系類(lei)的(de)產品(pin)，嵌入EMI來(lai)解決預(yu)案(an)，益處(chu)老客戶(hu)治理 不(bu)開心(xin)的(de)癥狀EMC難(nan)題。CINCON以便(bian)降低買家的(de)生產研(yan)發精力，提(ti)高關鍵的(de)適用(yong)(yong)詮釋(shi)用(yong)(yong)作指(zhi)導(dao)性專用(yong)(yong)工(gong)具(ju)。

杭州(zhou)市立維創(chuang)展科技(ji)公司是CINCON交流電(dian)源摸塊的(de)代理加盟銷(xiao)售商，出具CINCON電(dian)源適配器方案的(de)DC-DC裝換器、AC-DC電(dian)源線(xian)、LED外接電(dian)源等，護膚品(pin)原廠進囗的(de)，安全性能有效保障，頗具價長處(chu)，歡迎(ying)語了解(jie)

詳細信息介紹CINCON電源線請點擊量：//m.www.takasago.net.cn/article/2177.html


12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W12

150W

14~160V

5V, 12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

8:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQE50W

50W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB50W

50W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB60W-110S

60W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CQB100W-110S

100W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHE100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation

2.28×2.40x0.50
(Half Brick)

CQB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W

200W

10~36V, 18~75V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB300W

300W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL62368-1

2.28×2.40x0.50
(Half Brick)

CHB300W-110S

300W

43~160V

12V, 24V, 28V, 3.3V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CFB400W

400W

18~75V, 9~36V

12V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB600W-110S

600W

43~160VDC

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CHB50

50W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB75-300S

75W

180~450V

12V, 15V, 24V, 3.3V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB75

75W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100-110S

100W

66~160V

12V, 24V, 3.3V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100

100W

18~36V, 36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB150-300S

150W

180~425V

12V, 15V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB150

150W

36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB150-110S

150W

66~160V

12V, 24V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB200

200W

18~36V

24V, 28V

2250Vdc Isolation
UL62368-1
EN45545-2

2.28×1.45x0.50
(Quarter Brick)

CHB300-300S

300W

180~425V

12V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL60950-1 & CB

2.28×2.40x0.50
(Half Brick)

CHB350

350W

18~36V, 36~75V

12V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
2.28×2.40x0.52
(Half Brick)

CFB600

600W

18~36V, 36~75V

12V, 24V, 28V, 32V, 48V

1.5KVDC Isolation
UL62368-1

4.60×2.40x0.50
(Full Brick)

CFB600-300S

600W

180~425V

12V, 24V, 48V

3KVAC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB750-300S

750W

200~425V

12V, 15V, 24V, 28V, 36V, 48V

3KVAC Isolation

4.60×2.40x0.50
(Full Brick)

CFB800

800W

18~36V

28V

1.5KVDC Isolation

4.60×2.40x0.50
(Full Brick)
