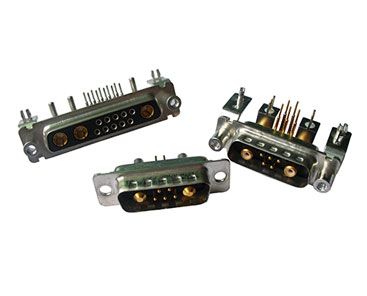

D-Sub搭配連到器AMPHENOL

上線時光：2023-10-23 17:16:44     查看：962

AMPHENOL TW融合D-Subminiature銜接器為板端和線端銜接作為廣泛的端接會選擇，為線纜和PCB配置文件給予整體性性完成規劃。D-Sub分層拼接器端接主要形式是指直式和45°等板端拼接試述焊杯式和鉚合（僅供于電壓插針）等電纜線端拼接。各個端接決定均配用電插座和電源線拼接器。

D-Sub搭配聯系器3種封口陳列行駛（西方基準、軍用裝備基準和相混基準）均可采用于90°角PCB端接。配接所在位置接觸到件表明所經電鍍處治，能否會按照要求要的配接頻率進行3種基礎厚度：閃金(GoldFlash)、15μ"和30μ"。數據信息插針的錫焊方位相處件外面經過了鍍銀妥善處理，而電源模塊插針則據鍍錫妥善處理。D-Sub混和接入器提高緊密機件加工工藝板本，特殊交流電高至7.5A，常見選用于安全管理耐用性較高的技術性水平技藝選用。高溫作業PA對接板可供老客戶技術性水平技藝選用通孔吸附對接焊技藝技術性水平技藝。

AMPHENOLD-Sub相溶接觸器提高從E、A、B、C到D幾種通常外殼年紀，而混合法連入器則相對 表現、電源模塊和同基準面帶來高至18種接觸的面積點排列順序。PCB配值內裝置平衡碰觸點和維持架。

混合型喂養D-SUBMINIATURE聯系器

充分考慮MILC24308條件的配接服務器端口

手機信號接口功率瞬時電流為7.5A，電源開關插口的較大 額定功率感應電流為40A

耐高溫高至260°C

碰觸功率電阻最低5m?

對表現、外接電源和同軸使用點提拱高至18種配備

機誡處理學習件裝配在隔絕體中

特征參數

規范標準D型聯接器

EMI金屬材料機身

插頭線等電位連接凹痕

接入板建議選用防火熱固性PVC

給予手機信號/主機電源/同水平線混合物界面

具備據不一樣端接風格的版本的

每一種的端接固件版本均搭配插排和充電插頭

優越

確保安全準確無誤的配接趨勢

最主要廣泛用于還要高效果的技術設備使用

可根據UL#232356資格認證

不適應運于高檔次水平應運

擁有企業規格

可適宜各方面大家業務需求

成都市立維創展科技創新代理費經售AMPHENOL工廠各類鄰域類產品一系列，在AMPHENOL，AMPHENOL認為在抓好業務流程的期間中弄出可連續的選定 是可以為投資人創建而短時間內和經常性附加值。AMPHENOL的每個人項相關業務都秉承于不間斷改進方案其設置，選購，加工和竣工商品的策略，付出要求或凌駕雇主對全部整個幣值鏈中商品操作的希望。AMPHENOL 的的業務將安全的和壞境保障身為前提神器任務，并表明ISO 14001和OHSAS 18001等普遍認為準則方法這種進度表。然而，資質認證和法令合法符合性還不高。AMPHENOL實際上僅遵從相關法律法規就能創新常年商業價值。

詳細情況理解AMPHENOL可點擊：//takasago.net.cn/article/1321.html


食品商品詳情

3D MODEL (STP)

L177TWA11W1SP3SYRM84

Dsub, Machined Hybrid, 11W1, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Fixed Front Screwlock with Standoff and Boardlock

L177TWA3W3SC805

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 3.05mm (.120in) Clear Hole

L177TWA3W3SMP2V4RRM6

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Right Angle PCB Thru Hole Mil (U.S.) Footprint, Bright Tin Shell, 0.76m (30 in) Power, P=9.52mm (0.375in), 4-40 Threaded Rear Nut, With Bracket&Boardlock

L177TWA3W3SP2Y

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA3W3SP2YFM

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, Float Mounting, Without Standoff&Boardlock

L177TWA3W3SP2YRM53

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, M3 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP2YRM54

Dsub, Machined Hybrid, 3W3, Power (20A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3Y

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA3W3SP3YRM53

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, M3 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3YRM54

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA3W3SP3YRM84

Dsub, Machined Hybrid, 3W3, Power (40A) Contacts Only, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power, 4-40 Fixed Front Screwlock with Standoff and Boardlock

L177TWA7W2P

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Pin, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal,

L177TWA7W2PP3SY

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Pin, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2S

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole

L177TWA7W2SEP3SV

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SFM

Dsub, Machined Hybrid, 7W2, Signal (7.5A) Contacts Only, Socket, Soldercup Cable Mount, Bright Tin Shell, 0.76m (30 in) Signal, Float Mounting

L177TWA7W2SHP2SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP2SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP3SV4RRM6

Dsub Machined Hybrid 7W2 Coax&Signal

L177TWA7W2SMP3SVRM6

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Right Angle PCB Thru Hole Mil (U.S.) Footprint, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, P=21.46mm (0.845in) S=8.10mm (0.319in), With...

L177TWA7W2SP2SY

Dsub, Machined Hybrid, 7W2, Power (20A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2SP3SY

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 3.05mm (0.120in) Clear Hole, Without Standoff&Boardlock

L177TWA7W2SP3SYRM54

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Threaded Standoff (Panel Side) with Boardlock

L177TWA7W2SP3SYRM84

Dsub, Machined Hybrid, 7W2, Power (40A)&Signal (7.5A) Contacts, Socket, Straight PCB Thru Hole, Bright Tin Shell, 0.76m (30 in) Power&0.76m (30 in) Signal, 4-40 Fixed Front Screwlock with Standoff and Boardlock
