93(x)國產有源倍頻器Mi-Wave

更新耗時：2024-11-06 17:17:44     手機瀏覽：799

Mi Wave的93（x）國產有源倍頻器徹底的采取穩定性優勝MMIC集成ic進行倍頻和不斷擴大。

表現

?高至全波導頻段遍布

?是需要低輸出帶動電平

?較低諧波功率

?高打印輸出工率

運用

?檢查實驗操作室

?子控件

?本地網自由振蕩器

?5G和6G運營軟件

杭州市立維創展創新科技有限制的機構品牌授權微商代理銷售業務Mi-Wave毫米左右波軟件，Mi-Wave是商業型和軍品用毫米（mm）左右波產品歐洲卓越者，可不可以出具毫米（mm）左右波電子元器件和板塊來解決計劃。產品線覆蓋：變小器、混頻器、衰減器、濾波器、旋轉開關、T/R、同軸電纜、射線鏡等，所涉及到幾率高達hg320GHz。歡迎語詳詢。



Model NumberInput Low Frequency (GHz)Input High Frequency (GHz)Output Low Frequency (GHz)Output High Frequency (GHz)Input Power (dBm)Output Power (dBm)Input PortOutput PortDC BiasX Factor
932-10/20/10/SMAF-25101020+11 to 16 nominal, +17 max.+7 to +10 nominalSMA-FeamleSMA-Feamle+8V@105mA,+12V max.2
932AF-20/599/KF13.252026.5400 to +5 nominal, +10 max.20 nominalK-FemaleWR-28 waveguide, UG-599/U Flange+8 V@470mA,+15 V max.2
932KF-10/KF913.251826.5+5 nominal, +10 max+15 nominalK-FemaleK-Female+8 V@82 mA,+15 V max.2
932KF-30/3.5mmF913.251826.5+3 to +5 nominal, +10 max.+31 nominal3.5 mm Female3.5 mm Female+6V@1.35A, +12 V max.2
934BF-10/3838.2512.53350+2 nominal, +5 max.+10 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.250 A,+12V max.4
934BF-13/3838.2512.533500 to +2 nominal, +5 max.+14.5 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.280 A,+12V max.4
934EF-20/3871522.56090+5 to +7 nominal, +12 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6 to +8V@650mA,+12V max.4
934UF-10/383101540600 nominal, +10max.+13 nominalK-Female/SMA- FemaleWR-19 waveguide, UG-383/U-M Flange+6V@143mA,+6V max.4
934VF-10/38512.518.755075+5 nominal, +10 max.+11 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+8V@270mA,+15V max.4
934VF-15/38512.518.755075+5 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+10V@321mA,+15V max.4
936EF-10/38710156090+4 nominal,+10 max.+13 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@237mA,+12V max.6
936EF-20/387H10156090+5 nominal, +10 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@540mA,+12V max.6

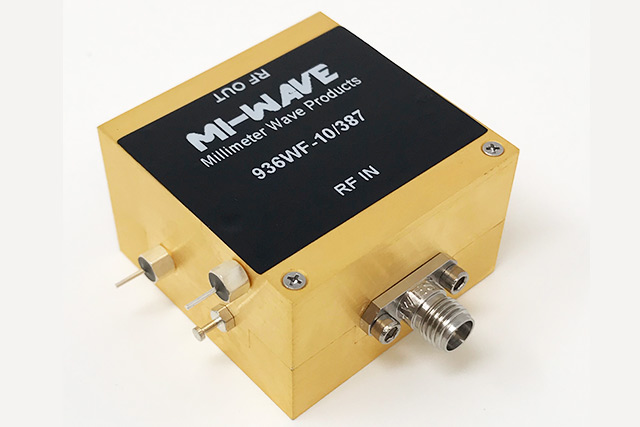

936WF-10/38712.518.3375110+6 nominal,+10 max.+10 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@309mA,+12V max.6
936WF-15/38712.518.3375110+5 to+10 nominal, +15 max.+16 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+12V@500mA,+15V max.6
936WF-20/38712.518.3375110+5 to+10 nominal, +15 max.+20 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@410mA,+15V max.6
938EF-16/387H7.511.256090+3 to +5 nominal, +10 max.+17 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+8V@590mA,+12V max.8
938W-80/106/15/3888.911.7880106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@180mA,+15V max.9
938WF-10/3871013.2580106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@180mA,+12V max.8
